7.1. Tutorial: Accessing profiling information

In this tutorial you will learn to use the libpva python module, this library is used to analyse profiles of the programs that run on the IPU. It provides granular information on the compute and memory exchange steps taken on each tile of the IPU. You will learn to:

Use the libpva library to access and analyse profiles from the IPU execution.

Setup

For this tutorial we are going to use a PopART MNIST example and capture profile information that can be read using the PopVision Analysis Library, which is included in the Poplar SDK package.

The PopART MNIST example is in the start_here directory (this is a subset of the code from the simple_applications/popart/mnist directory). Enter the start_here directory and follow the instructions in the README.md to install the required modules and download the data.

Once you have followed the instructions and been able to run the MNIST example we will re-run the MNIST example with profiling enabled:

POPLAR_ENGINE_OPTIONS='{"autoReport.all":"true"}' python3 popart_mnist.py

When this has completed you will find a file called profile.pop in the training and inference subdirectories of the current working directory. Note: You can specify an output directory for the profile files to be written to:

POPLAR_ENGINE_OPTIONS='{"autoReport.all":"true", "autoReport.directory":"mydirectory"}' python3 popart_mnist.py

During the execution of these commands, inference/profile.pop and training/profile.pop files were generated. These files report the number of cycles spent on each operation by each tile of the IPU. This rich profiling information can be analysed both using the libpva python library included in the Poplar SDK and the PopVision Graph Analyser. Both can be downloaded from the Graphcore downloads portal.

Using the python API

In this tutorial we use the libpva library to access profiles of the IPU, the documentation for it can be found here: PopVision Analysis Python API.

Loading a profile

Start Python in the directory that contains the profile.pop file you would like to read. Loading the profile into a Python object is easily done with the following:

import pva

report = pva.openReport("profile.pop")

Now you can access information from the report, as shown in the following examples:

print("Number of compute sets: ", report.compilation.graph.numComputeSets)
print("Number of tiles on target: ", report.compilation.target.numTiles)
print("Version of Poplar used: ", report.poplarVersion.string)

Try executing these examples yourself and you should see output similar to the following:

Number of compute sets:  29
Number of tiles on target:  1472
Version of Poplar used:  2.1.0 (df2b00ba5a)

You can also iterate over properties such as execution steps, which each represent the execution of a program in Poplar. In this example, we sum the total number of cycles on IPU 0 for all execution steps:

sum(step.ipus[0].cycles for step in report.execution.steps)

Using visitors to explore the data

To analyse the compiled program, it is best to use a ProgramVisitor class with the appropriate visitor functions (See API Documentation for a list of available methods).

A more general explanation of the “visitor pattern” is available on wikipedia along with a python example.

For example, the following class will print the name of any OnTileExecute programs that use multiple vertices:

class TestVisitor(pva.ProgramVisitor):
    def visitOnTileExecute(self, onTileExecute):
        if len(onTileExecute.computeset.vertices) > 1:
            print(onTileExecute.name)

Now we will apply this visitor to every program so that we can see a list of all OnTileExecute programs executed that use multiple vertices:

v = TestVisitor()
for s in report.execution.steps:
    s.program.accept(v)

NOTE: You may see a long list of identical names. This is due to multiple OnTileExecute steps having the same name, which is to be expected.

You can easily create plots of information using Python’s matplotlib library. The following example plots total memory usage (including gaps) for each tile.

import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt

plt.plot([tile.memory.total.includingGaps for tile in report.compilation.tiles])
plt.xlabel("Tiles")
plt.ylabel("Bytes")
plt.savefig("MemoryByTilePlot.png")

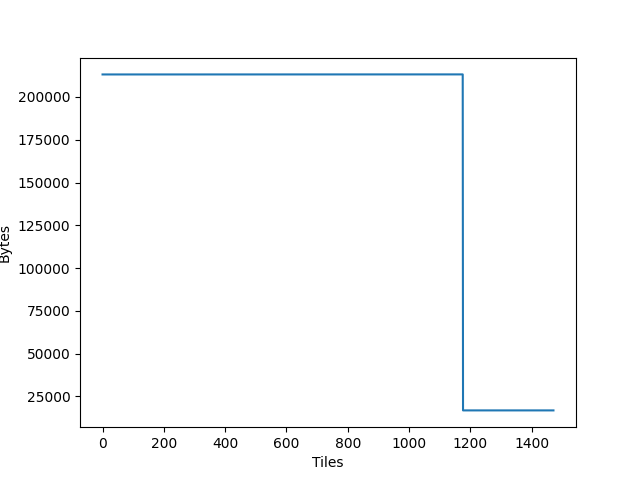

Now open the newly created MemoryByTilePlot.png file and you should see a plot similar to the following.

PopVision Analysis Library screenshot of memory by tile

The examples shown in this tutorial are available in the complete/libpva_examples.py Python script, which you may run from any directory that contains a profile.pop file. Alternatively, perhaps you would like the challenge of finishing the incomplete version of this script in start_here/libpva_examples.py.

Going further with the PopVision Graph Analyser

The profiles (*.pop files) generated during this tutorial can also be opened using the PopVision Graph Analyser desktop tool, it provides a graphical interface to explore the performance of your programs on the IPU and can enable you to optimize the usage of tile resources in your IPU application.

The Poplar profiling tutorial provides a comprehensive example of using the Graph Analyser to profile a simple IPU application.

You can also find videos introducing many of the features of the Poplar SDK and the PopVision analysis tools by watching Graphcore’s introductory videos.
