6. Queue Manager

The Poplar library processes I/O operations in an asynchronous way using data streams. The Session class wraps that mechanism using the setUserOutputHandler() and setUserInputHandler() functions. This is described in detail in Section 4.5, Retrieving information from Session. In summary, a user callback is called each time the Poplar Runtime performs an I/O transfer.

Although such an approach, gives maximum flexibility to the user, it also imposes many responsibilities. The entire logic inside the callback must be written manually:

  • copying data from/to the source

  • ensuring that the correct data is copied when processing multiple requests with changing inputs

  • memory management for data I/O

  • application when output tensor is ready

The QueueManager class handles some of these responsibilities and reduces the burden on the user.

QueueManager creates and registers callbacks for each Anchor for which an instance of the user AnchorCallbackPredicate predicate passed to the QueueManager constructor returns BIND_USER_CB. Along with callbacks, the QueueManager object creates and controls a set of tensor data queues, storing pointers to the dedicated user-memory slots. Each queue is connected to the responding tensor data stream callback and deals with transferring and receiving data received from Poplar.

The only way to create a QueueManager object is to use the Session method createQueueManager(). It forwards all parameters to the QueueManager constructor, stores the created object in the memory owned by Session and returns a QueueManager access pointer to the user.

The lifetime of the QueueManager object is strictly related to the lifetime of the Session instance.

// Assuming there is a session (Session) already created
model_runtime::QueueManager *queue_manager = session.createQueueManager();

The QueueManager instance creates one queue per Anchor. There are two types of queues:

  1. InputQueue - dedicated to processing input data

  2. OutputQueue - dedicated to processing output data

Queues for the individual Anchor anchors can be accessed via inputQueue(), outputQueue(). Adding requests to the queue is done using model_runtime::InputQueue::enqueue() and model_runtime::OutputQueue::enqueue(). For these methods, the user can respectively specify ReadCompleteCallback and WriteCompleteCallback notifying callbacks that will be called when the IPU memory transfer is finished.

Each queue is based on SpscRingBuffer that is an implementation of a lock-free single-producer single-consumer circular FIFO queue. The buffer size can be set by the user in the QueueManager constructor. By default, the buffer size is double the batch size (outer tensor shape dimension).

Queues are not thread-safe, the user must ensure that appropriate synchronization mechanisms (for example std::mutex) between threads are applied when adding new requests. Queues store raw pointers to the user data. The user is responsible for the memory allocation of the input and output tensors. The user has to ensure that the data exists and pointers passed to the queue remain valid until a result is returned.

void enqueueInput(model_runtime::QueueManager *queue_manager,
                  const std::string &input_name,
                  void *input_data,
                  int64_t data_size) {

    ReadStartCallback read_start_callback = [=]() {
        std::cout << "Start reading " << input_name << " " << input_data
                  << "\n";
    };

    ReadCompleteCallback read_complete_callback = [=]() {
        std::cout << "Reading completed " << input_name << " " << input_data
                  << "\n";
    };

    ReadCompleteCallback read_complete_callback = nullptr;

    queue_manager->inputQueue(input_name).enqueue(input_data, data_size,
        read_start_callback, read_complete_callback);
}

void enqueueOutput(model_runtime::QueueManager *queue_manager,
                const std::string &output_name,
                void *output_data,
                int64_t data_size) {

    WriteCompleteCallback write_complete_callback = [=]() {
        std::cout << "Writing completed " << output_name << " "
                  << output_data << "\n";
    };

    queue_manager->outputQueue(output_name).enqueue(output_data, data_size,
        write_complete_callback, output_data);
}

// Assuming there is a session (QueueManager) already created and memory is
// allocated

// Queues are not thread_safe, in multithreaded environment appropriate
// synchronization mechanisms must be applied
static std::mutex g_i_mutex;
const std::lock_guard<std::mutex> lock(g_i_mutex);
enqueueInput(queue_manager, "input_data", static_cast<void*>(input_data),
             8);
enqueueOutput(queue_manager, "output_data", static_cast<void*>(output_data),
             8);
_images/queue_manager_flow.png

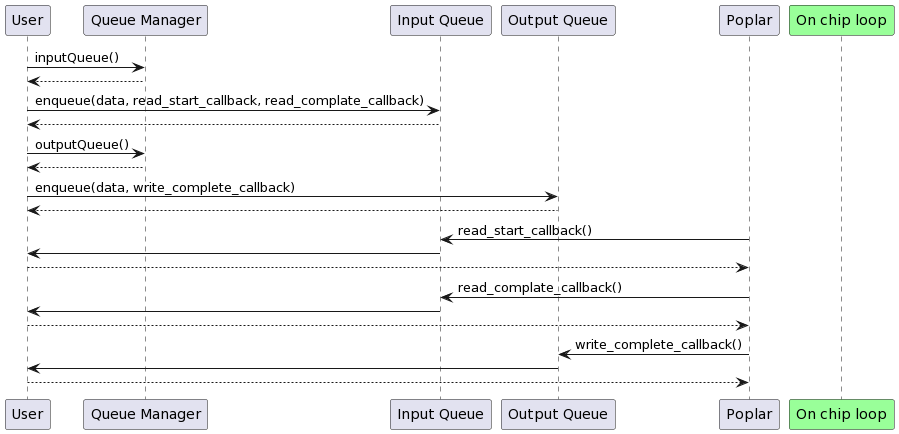

Fig. 6.1 Processing model I/O with Model Runtime queues.

This C++ example sends several inference requests to the IPU using QueueManager.

Listing 6.1 queue_manager.cpp
  1// Copyright (c) 2022 Graphcore Ltd. All rights reserved.
  2#include <atomic>
  3#include <chrono>
  4#include <cstdlib>
  5#include <memory>
  6#include <string>
  7#include <thread>
  8#include <vector>
  9
 10#include <boost/program_options.hpp>
 11
 12#include <model_runtime/DeviceManager.hpp>
 13#include <model_runtime/QueueManager.hpp>
 14#include <model_runtime/Session.hpp>
 15
 16#include "utils.hpp"
 17
 18int main(int argc, char *argv[]) {
 19  using namespace std::chrono_literals;
 20  static const char *example_desc = "Queue manager example.";
 21  const boost::program_options::variables_map vm =
 22      examples::parsePopefProgramOptions(example_desc, argc, argv);
 23
 24  auto reader = std::make_shared<popef::Reader>();
 25  for (const auto &model_file : vm["popef"].as<std::vector<std::string>>()) {
 26    reader->parseFile(model_file);
 27    examples::print(fmt::format("Parsed {}", model_file));
 28  }
 29
 30  popef::ModelBuilder builder(reader);
 31  std::shared_ptr<popef::Model> model = builder.createModel();
 32  examples::print("Model created from PopEF");
 33
 34  model_runtime::SessionConfig config;
 35  config.policy = model_runtime::LaunchPolicy::Immediate;
 36  config.wait_config =
 37      model_runtime::DeviceWaitConfig{600s /*timeout*/, 1s /*sleep_time*/};
 38
 39  model_runtime::Session session(model, config);
 40
 41  examples::print("Create and configure Queue Manager");
 42  const model_runtime::AnchorCallbackPredicate pred_main_or_empty =
 43      examples::filterMainOrEmpty(model);
 44  model_runtime::QueueManager *queue_manager = session.createQueueManager(
 45      100, nullptr, 0ns, pred_main_or_empty, pred_main_or_empty);
 46
 47  // In case the model is configured with Prefetch and run with max_look_ahead >
 48  // 0 then there is a number of inputs needed to be fetched before the first
 49  // output is generated.
 50  auto input_queues_feeder = [&]() {
 51    for (auto &elem : queue_manager->inputs) {
 52      const std::string &name = elem.first;
 53      model_runtime::InputQueue &elem_queue = elem.second;
 54      const popef::TensorInfo &info = elem_queue.tensorInfo();
 55
 56      const auto size = info.sizeInBytes();
 57      // Prepare and enqueue dummy inputs
 58      std::vector<char> elem_data(size, 0);
 59      elem_queue.enqueue(elem_data.data(), size, [name]() {
 60        examples::print(fmt::format("Enqueued data for input: {}", name));
 61      });
 62    }
 63  };
 64
 65  // Prepare buffers for produced outputs
 66  std::atomic<int> cnt_outputs = 0;
 67  const auto num_of_outputs = queue_manager->outputs.size();
 68  std::vector<std::vector<uint8_t>> outputs;
 69  outputs.reserve(num_of_outputs);
 70  for (const auto &out : queue_manager->outputs) {
 71    const popef::TensorInfo &info = out.second.tensorInfo();
 72    const auto size = info.sizeInBytes();
 73    outputs.emplace_back(size);
 74  }
 75
 76  auto output_queues_feeder = [&]() {
 77    int i = 0;
 78    for (auto &out : queue_manager->outputs) {
 79      const std::string &name = out.first;
 80      model_runtime::OutputQueue &out_queue = out.second;
 81      const popef::TensorInfo &info = out_queue.tensorInfo();
 82      const int64_t size = info.sizeInBytes();
 83
 84      out_queue.enqueue(outputs[i++].data(), size, [name, &cnt_outputs]() {
 85        examples::print(fmt::format("Received output: {}", name));
 86        cnt_outputs.fetch_add(1, std::memory_order::memory_order_relaxed);
 87      });
 88    }
 89  };
 90
 91  examples::print("Starting data feeders");
 92  auto feeders = std::thread([&]() {
 93    while (cnt_outputs == 0) {
 94      input_queues_feeder();
 95      output_queues_feeder();
 96    };
 97  });
 98
 99  examples::print("Running load programs");
100  session.runLoadPrograms();
101
102  examples::print("Running main programs");
103  auto mainPrograms = std::thread([&]() { session.runMainPrograms(); });
104
105  examples::print("Waiting for 1st output");
106  while (cnt_outputs.load(std::memory_order_acquire) <
107         static_cast<int>(queue_manager->outputs.size()))
108    ;
109
110  examples::print("Stopping session after first output");
111  session.stop();
112
113  mainPrograms.join();
114  feeders.join();
115
116  examples::print("Success: exiting");
117  return EXIT_SUCCESS;
118}

Download queue_manager.cpp
