2. Model Runtime under the hood

This chapter briefly introduces the general concepts of running the model on the IPU, introducing the main Model Runtime components and their responsibilities in the whole process.

2.1. Finding hardware

The user can provide any possible computation model (with its full definition is stored in the PopEF) and the first step is to figure out what hardware resources need to be provided (namely the number of the IPU accelerators, their generation and supported features) and if such hardware is available in the user’s system. The Model Runtime model_runtime::DeviceManager class lets the user pick a model_runtime::Device suitable for the model and to specify the exact characteristics the device must satisfy.

2.2. Data transfers

The user model compiled into the Poplar executable (stored as PopEF) needs to be transferred to the IPU. This is the first data transfer step. For regular model execution, the model inputs have to be sent from the host to the IPU and the model outputs have to be fetched back from the IPU to the host.

To gather up and control all the data streaming duties, Model Runtime provides a set of tools dedicated for these tasks contained in the Session class. The Session API includes several complex operations taking place under the hood; it also provides verification of the model parameters by providing wrappers for components functionalities.

2.3. Executable upload

To upload the model executable onto the device, Session uses the Model Runtime Executable object to deserialize the model from the PopEF and finally load it onto the IPU.

In most cases the user model consists of at least three types of programs:

Load: for uploading weights or other constants to the IPU memory. This is supposed to be executed once before the first Main program call
Main: the model computational graph implementation
Save: used to transfer the selected tensors data back to the host. This program is unused in most inference use cases.

Executable provides an API for controlling the execution (run, stop) of these programs.

2.4. Tensor data

Every model operates on data, which can be provided in different ways:

In the case of model weights, or other model constants, values may be compiled into the executable. This means that all information is transferred to the IPU in one step.
Another option is to store the data in PopEF’s TensorData. In this case, Model Runtime needs to set up the transfer of data to the device before the first model execution (to be precise: a Poplar Engine stream gets connected to proper PopEF TensorData which creates a direct data transfer channel operated by Poplar).
The last option is data provided explicitly by the user. This may be used for overriding TensorData and is the general way to provide regular model inputs.

Each logical model constant/variable/input/output data is organized in the form of a tensor and its transfer can be managed by the internal tensor manager object.

2.5. Managing the data sources/targets

To create data transfer channels between the user program and the IPU device, Model Runtime utilizes Poplar’s mechanism of asynchronous data feed functions - callback. During model execution, when the data transfer step is to be triggered, the IPU communicates with the Poplar runtime to initiate the transfer. It then calls the proper callback and passes to it the pointer to the memory where the target Tensor bytes are to be put (input Tensor) or where it can be fetched from (output Tensor). This call is blocking so Poplar needs to receive the data to continue with execution.

There are generally two sources of data for a model Tensor: PopEF’s TensorData that stores their values and data provided directly by the user.

The Session internal Tensor manager prepares and connects all the callbacks responsible for transferring the PopEF TensorData (if there is any and if the user did not exclude any or all of them from this auto-binding using the predicates mechanism).

When it comes to other data (both inputs and outputs) to be transferred explicitly by the user and not coming directly from PopEF itself, Session provides an interface to setup the connections. How the user data is queued to provide the best possible performance (in the general case) is the responsibility of QueueManager. To simplify the creation and basic configuration of QueueManager, Session provides a factory method (createQueueManager()) that constructs an object of the class QueueManager and registers itself in that object.

2.6. Queues of data

A naive strategy of simple serialization of the model execution stages are: prepare input, send the input to the IPU, wait for the output, fetch it from the device, repeat if not sufficient enough to achieve good model execution performance in real life applications.

As the processes of preparing user data and model execution on the IPU may be pipelined, QueueManager provides a mechanism of buffering user inputs and outputs. The tensors in the queue may be inputted and fetched asynchronously, so that the user program can prepare inputs in parallel (if possible) and add them to the queue. At the same time, but independently, the IPU keeps fetching the consecutive inputs, and fills the output queues with computations results.

The QueueManager API provides access to the lists of input and output queues. In this way, the user can enqueue data to/from the queues providing pointers to the user-managed memory where the data resides or is to be downloaded to. In this this way Model Runtime avoids extra copying. Data gets transferred to the device from the user memory (or the other way round) exactly when it’s needed by the IPU (or when ready for writing back to the user). In this process, the only blocking factor is the lack of data in the queue, which means that the user is not able to provide the data at a fast enough rate to keep the IPU busy all the time.

2.7. Buffers

QueueManager does not store the tensor data buffers, but instead stores pointers to them (plus some other metadata). Even though this is a sort of “light data”, operations on the queues are very frequent, so the extra cost of adding elements to them and removing elements from them should be as low as possible and preferably state-invariant.

Due to the identified requirements, QueueManager organizes tensor queues in the form of ring buffers. Each Tensor has a dedicated constant size buffer that gets filled with data up to its capacity and drained in the same order (FIFO). When the last cell in the queue gets filled, the algorithm starts to use up the data from the very beginning of the queue. Since this is an asynchronous process, while user enqueues more tensors, the IPU keeps consuming them.

The RingBuffer class is a Single Producer - Single Consumer thread-safe structure. As there is only one user of the buffer (QueueManager) that can access it in asynchronous manner, this profile provides the suitable level of safety, without too much impact on performance.

2.8. Conditional execution

When one compiled graph contains one model, you must provide data for all input and output anchors for correct execution of the graph on the IPU. This is the default execution for a ModelRunner object. Sometimes, a graph compiled by Poplar can contain multiple models (Fig. 2.1). In this case, the IPU will conditionally execute one of these models based on an input parameter (specified in an input anchor) that manages the selection of the appropriate execution path. In order to execute different models through one ModelRunner instance, you are expected to provide only data for anchors that will be required by the IPU to perform the request.

There are two steps you must perform:

The validate_io_params option should be disabled. This option checks if you have provided enough input parameters to complete the request. In other words, it checks whether each parameter corresponds to an existing internal queue. By disabling it, you will be able to only provide inputs for the model you want to execute and not all models.
You must know which anchors are associated with each model in the graph. When you send a request, you need to provide the data only required by the model you want to execute. The PopEF file contains information about what anchors the graph contains, but it does not contain information about which anchors are associated with a model. You can use the popef_dump tool to check what anchors are in the graph.

Note

If you provide inputs for a different model than the one you want to execute, then a timeout will occur. This will be the only information you will receive in case of incorrect execution of the request.

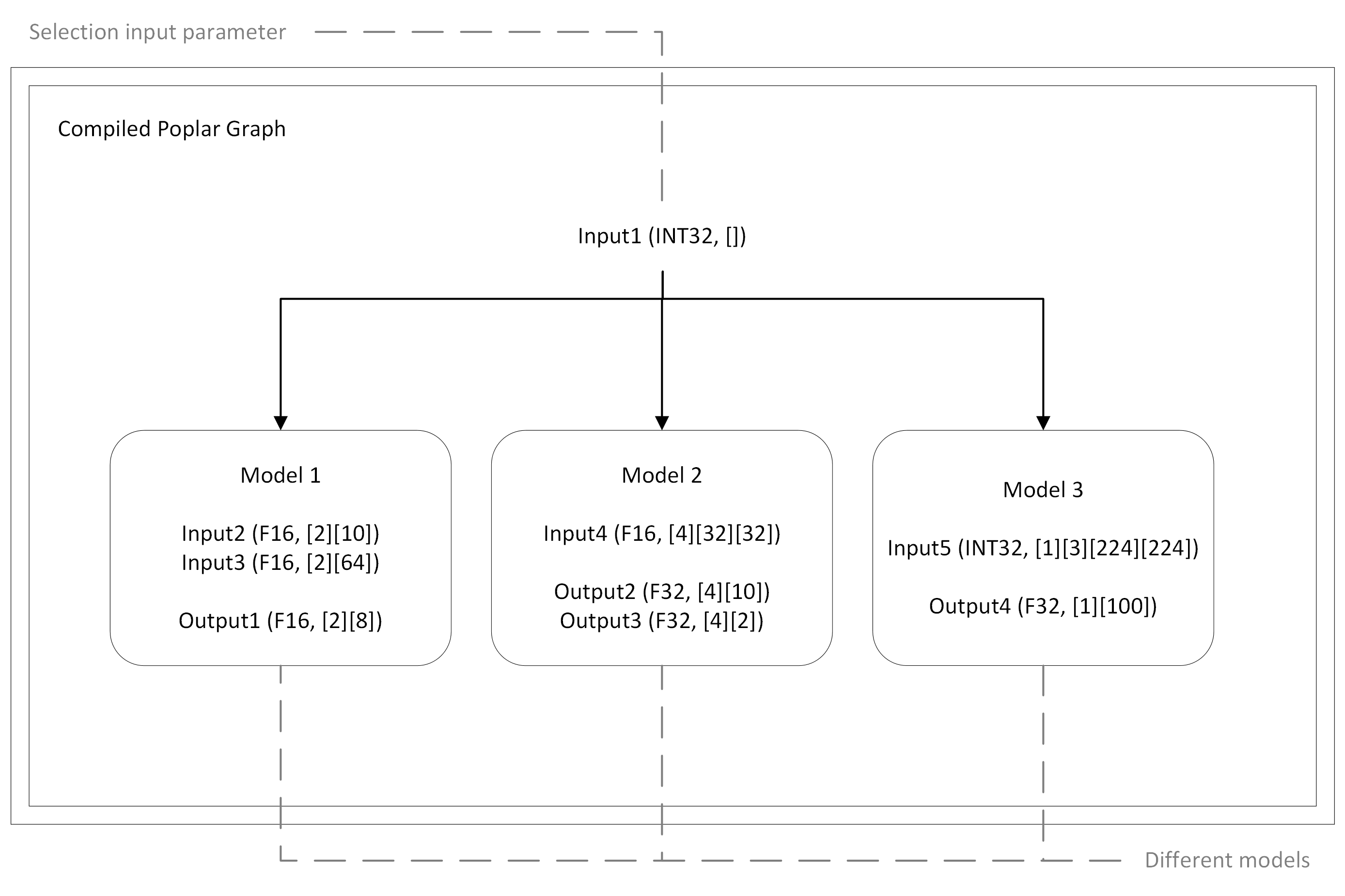

_images/cond_execution.png — Fig. 2.1 An example graph construction with multiple models

2.9. Dynamic batch sizing

By default, ModelRunner only accepts model inputs and outputs with batch sizes that are an integer multiple of the batch size from the PopEF model. By setting the batching_dim configuration option, you can enable dynamic batch sizing which allows you to specify any batch size.

By default, dynamic batch sizing is disabled (batching_dim == 0xFFFFFFFF). In this case, the batch size must be an integer multiple of the batch size from the PopEF model. For example, without dynamic batch sizing enabled and for a PopEF model with an input shape of [3, 4, 2] where dimension 0 specifies the batch size, ModelRunner can only accept inputs with shapes defined by [ N * 3, 4, 2], (where N is any positive integer).

To enable dynamic batch sizing, we set batching_dim to the dimension that contains the value for the batch size. batching_dim``can be ``[0, 1, 2, ... , max_dimension_model-1].

For example to enable dynamic batch sizing on dimension 1, you would set batching_dim == 1. Now dimension 1 can contain any batch size. Using the example from earlier, ModelRunner can service inference requests with input and output shapes [4, batch_size, 2] where batch_size is any positive integer.

2.10. Improved model fusion and I/O overlap performance

Model fusion is a concept in machine learning where the inputs and outputs of multiple small models are combined to improve the overall predictive performance for a specific problem. While Model Runtime can use the individual inputs and outputs of the smaller models as inputs and outputs into the single large model and can conditionally execute a branch related to a single (small) model, problems arise when input data is unavailable. In this case, the default Model Runtime behaviour is to flush all inputs and outputs. This degrades performance for fused models as this will execute the branches for all the different small models.

A similar situation occurs if I/O overlap is being used to improve model throughput. If there is not enough data to fill a batch, then there is a timeout. This also causes all data to be flushed.

To handle flushing of specific data in fused models or to flush some data during I/O overlap, ModelRunnerConfig contains flush_callback, a configuration option that specifies a pointer to a callback function, which Model Runtime calls once, after a timeout occurs when expected data is unavailable.

This callback function provides a mechanism to specify which input and output data is changed and how the data is changed. Input and output data can either be flushed (with null data) or the values can be updated.

The callback function must have the following parameters:

tensor_id: The ID of the tensor that ModelRunner was expecting when the timeout occurred.

inputs: The pointer to the updated input data structure. ModelRunner expects to find the updated input data here after the callback returns and will then update its input queue.

outputs: The pointer to the updated output data structure. ModelRunner expects to find the updated output data here after the callback returns and will then update its output queue.

When you have defined the function, you need to assign its pointer to the flush_callback configuration option.

For example, in your application, you would define:

ModelRunnerConfig config;
if (batch_size == 3)
  config.flush_callback = [&inputs_to_be_flushed, &outputs_to_be_flushed](
                              const std::string &tensor_id,
                              const InputMemoryView *&inputs,
                              const OutputMemoryView *&outputs) {
    BOOST_TEST_MESSAGE(
        "flush_callback called without any change for tensor: "
        << tensor_id);
    inputs = &inputs_to_be_flushed;
    outputs = &outputs_to_be_flushed;
    return;
  };
else if (batch_size == 7)
  config.flush_callback = [](const std::string &tensor_id,
                             const InputMemoryView *&inputs,
                             const OutputMemoryView *&outputs) {
    BOOST_TEST_MESSAGE("Suppress the compile warning inputs: "
                       << inputs << "outputs:" << outputs);
    BOOST_TEST_MESSAGE(
        "Return immediately in flush_callback for tensor: " << tensor_id);
    return;
  };

Note

The application defining the callback function must ensure that the unavailable tensor and the input and output data to be changed or flushed belongs to the small model that is currently being executed. If not, inference results may become corrupted.

2.11. Error handling

This section describes how Model Runtime handles recoverable errors which are raised during the execution of a model. These errors can occur when running a Poplar program. A recoverable error is raised when a running program fails due to a system error that is likely to be transient.

A full description of all Poplar errors can be found in the Exceptions section of the Poplar and PopLibs API Reference.

Model Runtime handles errors as follows:

application_runtime_error
- If auto_reset is true, then the IPU is automatically reset before the next inference.
  - An IPU reset will be performed before the next execution.
  - Any new requests will be processed after the IPU reset is complete.
- If auto_reset is false, then an error is raised.
  - The error message contains the reason why the error occurred.
  - All requests which have already been enqueued before the exception occurred will return the error.
recoverable_runtime_error
- If poplar::RecoveryAction is IPU_RESET and if auto_reset is true, then the IPU is automatically reset before the next inference.
  - An IPU reset will be performed before the next execution.
  - Any new requests will be processed after the IPU reset is complete.
- If poplar::RecoveryAction is not IPU_RESET or if auto_reset is false, then an error is raised.
  - The error message contains the reason why the error occurred.
  - All requests which have already been enqueued before the exception occurred will return the error.
Unknown runtime errors
- An error is raised.
- The error message might contain the reason why the error occurred.
- When these errors occur manual intervention is required before the system is operational again.
- The IPU will not be reset and all requests will return the error.
All other runtime errors
- An error is raised.
- The error message might contain the reason why the error occurred.
- When these errors occur manual intervention might be required before the system is operational again.
- The error message might contain a required recovery action.
- The IPU will not be reset and all requests will return the error.
